Roll Forming Machine to Make Drywall Profiles Stud and Track
Product Descriptions
Stud tracks are widely used in luxury villas, high-end hotels, office buildings and shopping malls. It is sturdy, durable, and highly resistant to corrosion. It is also popular with construction units and construction units in terms of price, reducing the quality concerns of the project during construction, and frequent maintenance due to material quality problems during use. Greatly reduce the construction cost and various troubles caused by maintenance during use.
Version to design
Product Parameters
| | Items | Specifications |
| Material of coil | Thickness | 0.27-1mm galvanized steel |
| De-coiler | Weight | 3 ton manual |
| Forming system | Rolling Speed | 0-10m/min |
| Embossing | At sides |
| Roller Stations | About 13 stations forming |
| Roller Material | Cr40 Steel with quenching |
| Shaft Material | 45# Steel Diameter 60mm shaft |
| Motor Power | 7.5 kw |
| Hydraulic cutting Power | 4 kw |
| Cutting system | Material of cutting | CR12 with quench treatment |
| Hardness | HRC58-62 |
| Tolerance | +-1.5mm |
| Cutting blade | 1 set of cutting blade |
| Electrical control system | Electric Source | 380V, 60HZ,3 phase |
| Control System | PLC |
| | Weight | About 3 tons |
| | Way Of Drive | 1 inch single chain |
| | Size of machine | 5500mm* 600mm*800mm |
Main Components
| 3 ton passive de-coiler | 1 set |
| Main roll forming machine | 1 set |
| Punching device | 1 set |
| Cutting device | 2 sets |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 2 units |
| Safety cover | 1 unit |

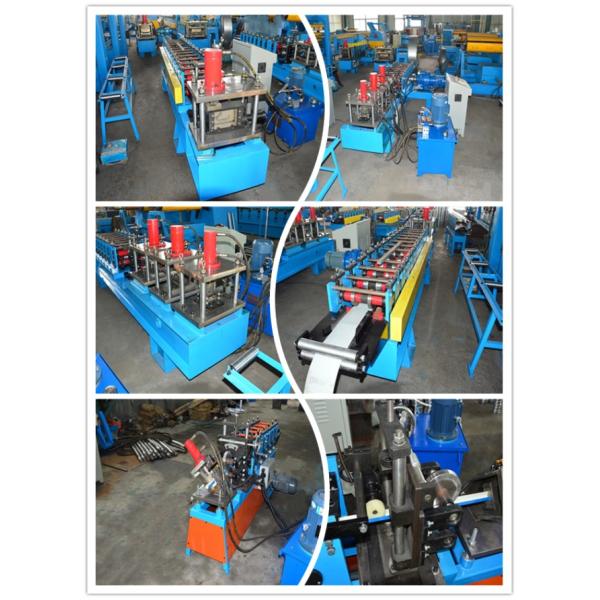

Machine pic
Application
Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.
Making:
The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.
Assembling:
The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.
Testing:
Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.
Delivery:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
Main features
1. We can make and design all kinds of roll forming machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
